MARINE CORE 5G

High-performance Offshore Cellular Communications

Marine-grade communications hub for offshore use

AGILE Marine CORE seamlessly resolves the connection issues related to congested marina Wi-Fi, spotty cellular
connections, or no connections at all. Delivering high-performance LTE service for HD streaming and internet in the U.S. and internationally more than 25 miles (40km) offshore. Now you can enjoy more reliable coverage and faster speeds.

4 - 5G Radios with LTE Fallback

4 SIM Slots

Marine-rated enclosure

Advanced Connectivity

Data Rates per Channel

Uplink up to 150 Mbps

Downlink up to 1.2 Gbps

*Subject to network availability
Marine CORE 5G features four 5G radios with LTE fallback and four SIM slots per unit, supporting local or virtual SIMs from an optional NetView datacenter system. Its bonded aggregation ensures session persistence, maintaining connectivity even if a cellular channel drops.

Powerful, Secure Wi-Fi

Powerful and secured Wi-Fi with a large effective range. Wi-Fi mesh is possible with multiple Mobile CORE systems deployed in a given territory.

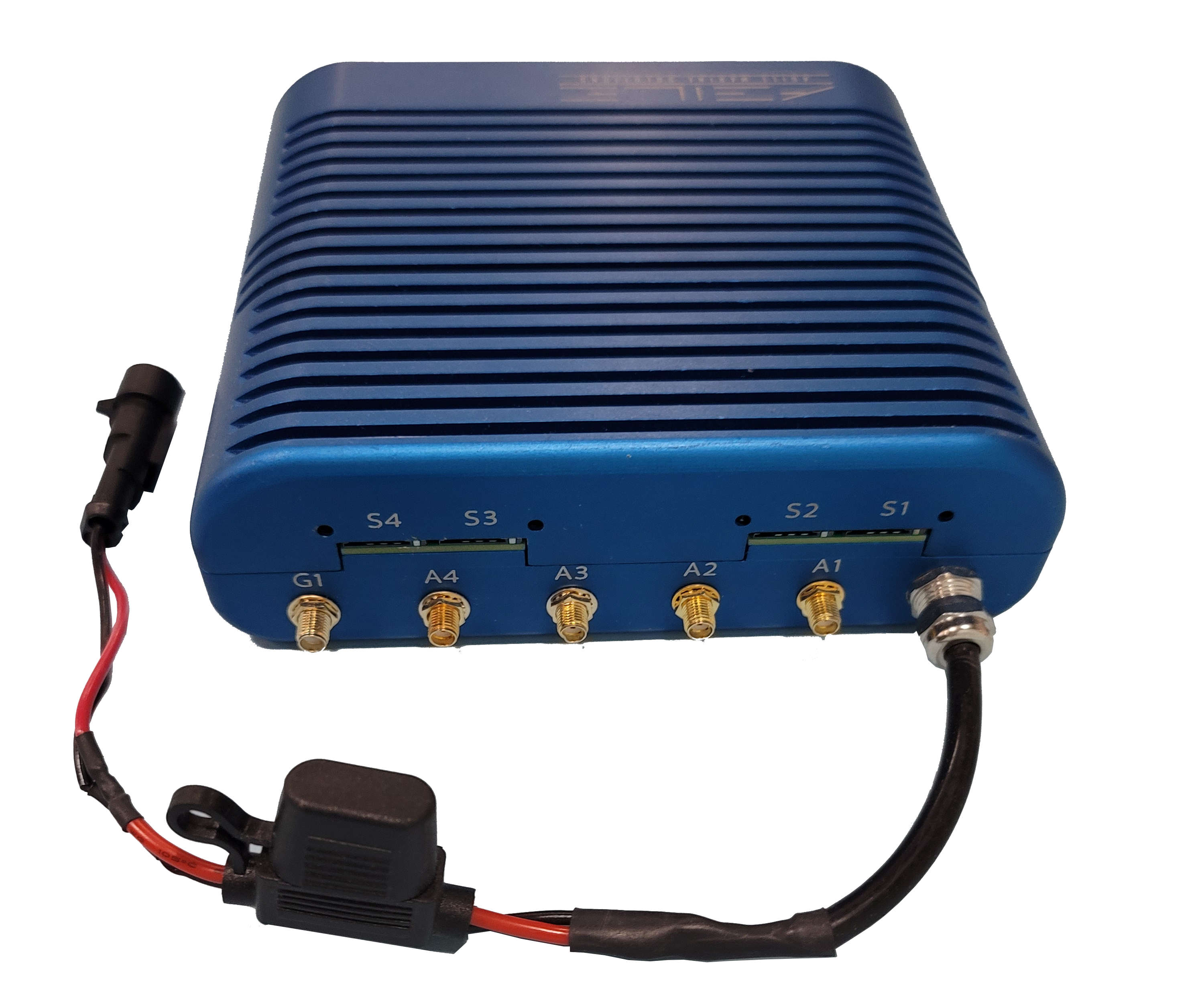

Marine-grade enclosure

Marine CORE is a communications hub designed for yachts, ships or any location subject to adverse weather conditions. With no moving parts, it withstands vehicle motion and harsh conditions. It operates on DC power (AC optional) and includes embedded GPS tracking.

Optional LMR (Land Mobile Radio)

The optional LMR extension automatically detects trunked radio network outages and shifts transmissions to a secure LTE connection—no operator action required.

Every AGILE CORE unit includes AGILE ROUTING, sophisticated software that manages cell tower handoffs as you travel, maximizing signal strength and automatically searching for the best throughput connection available. Use of bonded aggregation allows CORE users the ability to maintain session persistence even if one or more of the cell connections fail for any reason.

GPS tracking embedded in the unit

Built-in GPS (switchable on/off) seamlessly allows real-time location monitoring without additional hardware, improving operational coordination, safety, and resource management.

CAPABILITIES



  • Intelligent software to scan for the best LTE connection available
  • Smart routing for automatic switching between LTE and satellite services and back to LTE to reduce satellite usage
  • 4 LTE channels / 4 SIM slots for each Marine CORE
  • Automatic switching between carriers for expanded coverage
  • 4 SIM cards installed in the unit, virtual download possible via NetView service
  • Large coverage area secured Wi-Fi for multiple devices



  • Ruggedized to endure extreme weather
  • GPS tracking embedded in the unit
  • Interconnect points for mobile data units, surveillance equipment, and other devices
  • Conformally coated boards and billet aluminum construction for durability
  • Passively cooled for a wide range of temperatures

Download full factsheet

There is an AGILE CORE unit to fit any application

TWIN CORE

2 LTE radios and 2 SIM slots; powered by sophisticated software that effortlessly maximizes signal strength and tower handoff.

Twin CORE X5

Compact and simple, with 2 5G radios with LTE fallback and 2 SIM slots; powered by sophisticated software that effortlessly maximizes signal strength and tower handoff.

Mobile CORE X5

4 5G radios with LTE fallback and 4 SIM slots; powered by sophisticated software that effortlessly maximizes signal strength and tower handoff.
